60W micro metal gear motor small gear reducer motorSpecificationMode5GN-C(Oil bearing for applications in light loading)VoltageAC220V, SINGLE PHASE(if need 110v, contact us)Power60W Frequency50/60HzCu
Mode | 5GN-C(Oil bearing for applications in light loading) |
Voltage | AC220V, SINGLE PHASE(if need 110v, contact us) |
Power | 60W |
Frequency | 50/60Hz |
Current | 0.25/0.13A |
Torque | 4.5 kg.cm |
Rated Speed | 1350rpm/1550rpm |
Output Speed | 1rpm~500rpm (if<8.3rpm, add intermediate gear-box) |
Insulation class | B class(130 degree) |
Working duty | Continuous running(S1 working duty) |

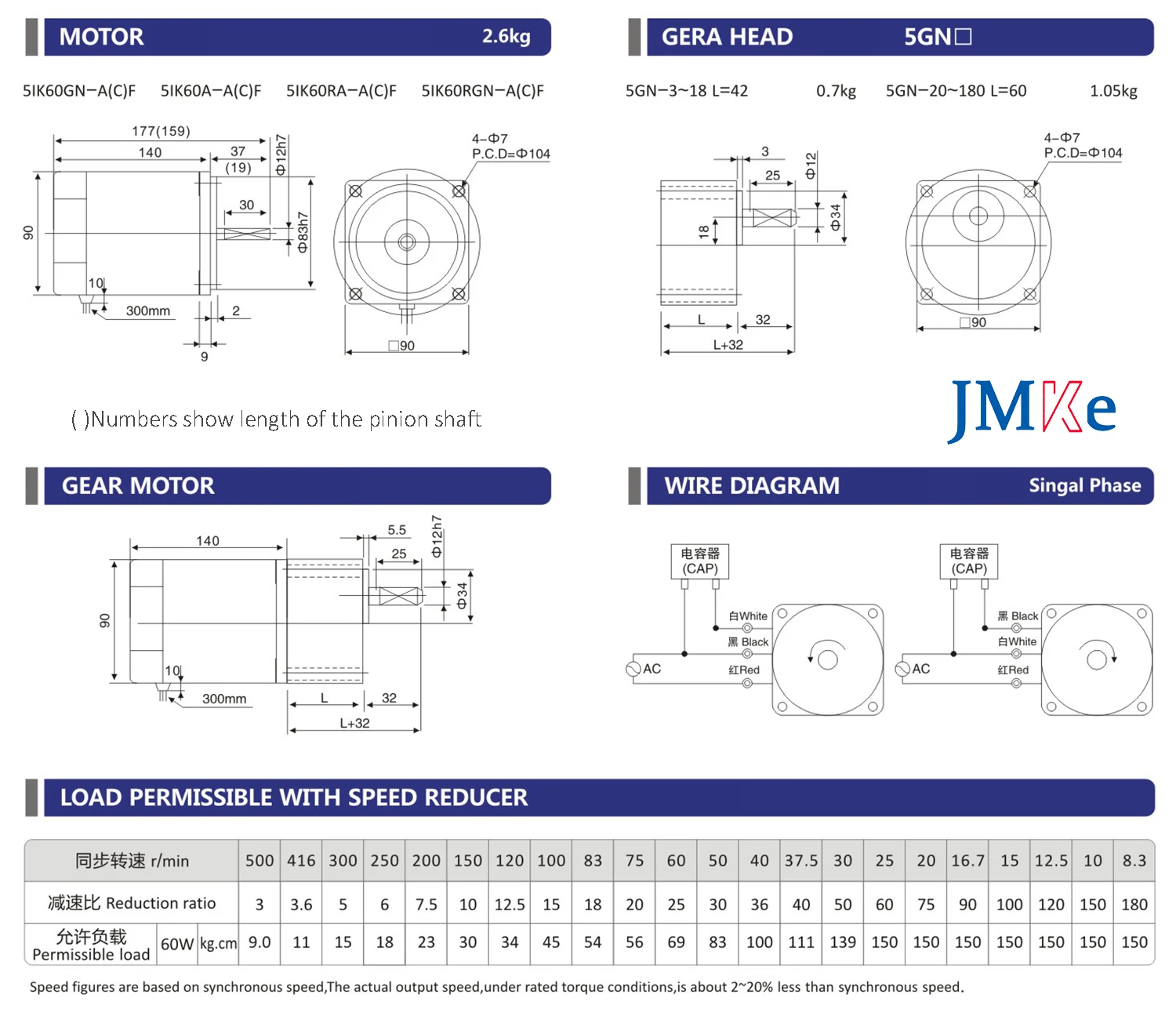

Motor housing diameter | 90*90mm |
Accessory | installing screws |
Available accessory | speed controller, Electromagnetic brake |
Using Temperature/humidity | -10°C ~ 40°C (no freeze) / ≤85% |
Warranty | One Year |
Net Weight: 2.5+0.7/1.05 Kg per set
It’s supported to Start Order even in small quantity.
Delivery by express service.
if need extra accessory, contact us
NOTE
1. Connect wire in right way
2. Don't run on-load for too long time, or run over load in low speed in case of excess temperature
3. Don't drag the expansion line
4. Don't disassemble randomly the assembled gear head in case of noise by drop dusty
5. Don't beat or squeeze it when connecting the output shaft of gear motor and loading subject. Otherwise, inside deformation might cause noise or locked phenomena
