50KTY 110/220V AC Synchronous Motor
50KTY 110/220V AC Synchronous Motor
50KTY 110/220V AC Synchronous Motor
50KTY 110/220V AC Synchronous Motor
50KTY 110/220V AC Synchronous Motor

50KTY 110/220V AC Synchronous Motor

JMKE AC Synchronous Motor 50kty 220v permanent magnet 110v reversible gear Micro gear motor with low noise and high torqueSolidly constructed and ready to install in numerous applications.

  • Model： 50KTY
  • Power： 7W
Online Inquiry

Micro gear motor with low noise and high torque

Solidly constructed and ready to install in numerous applications.

Voltage(V)

110/220

capacitor(μf)

0.15

Power input(W)

<6

Input current(mA)

< 25

Speed (r/min)

1.5

2.5

5

8

10

15

20

25

30

40

50

60

80

Rated Torque(kgf.cm)

30

20

11

9

7

5

3.5

3

2.5

2

1.5

1.2

1

direction

CW/CCW

Insulation grade

E

Dielectric strength

1800V/S

Temperature rise(K)

< 65

Noise(dB)

< 45

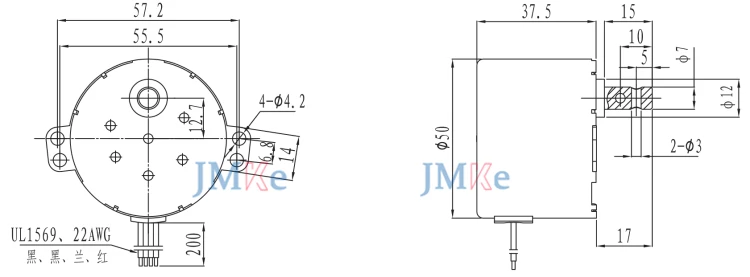

50KTY

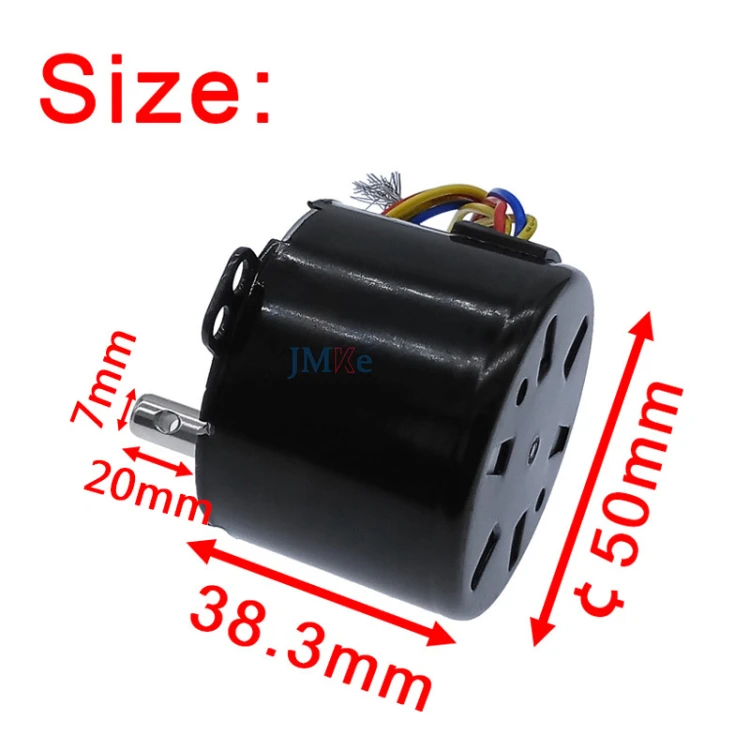

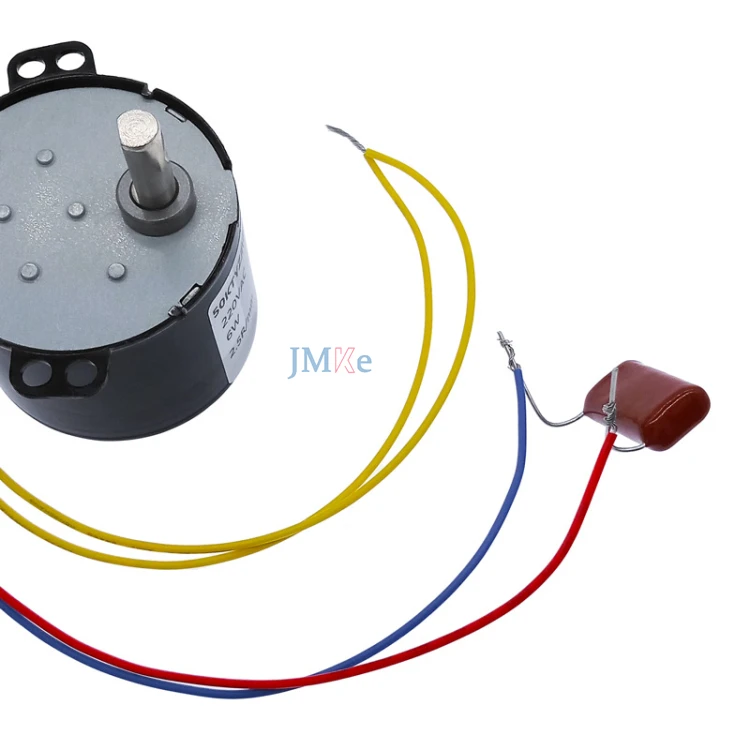

50KTY (3)(1)50KTY (7)(1)

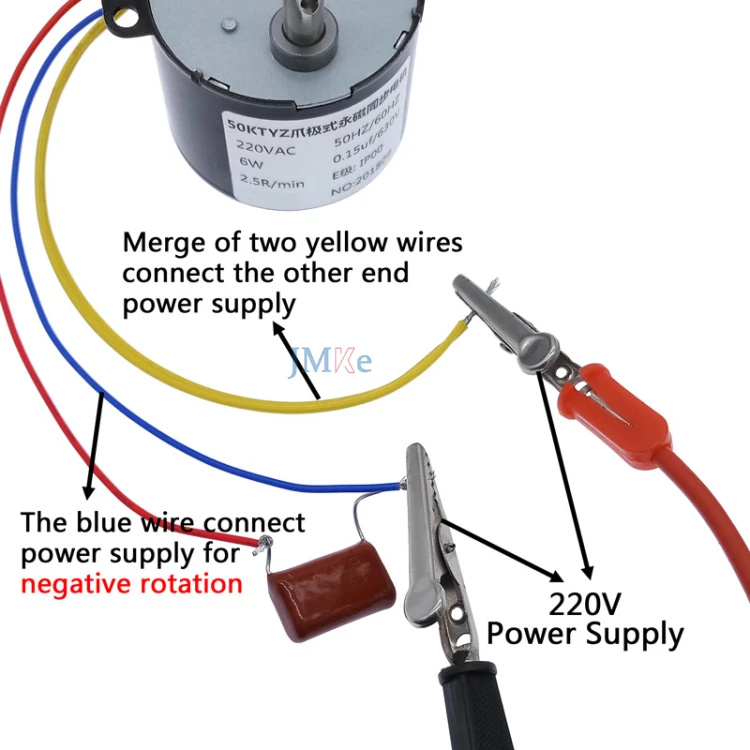

50KTY (9)(1)

Typical applications include factory automation machinery, labeling machinery, machine tools, material handling machinery, packaging machinery, printing machinery, robotics, x-y tables, textile machinery, applications which require smooth operation or applications which have medium to high reflected load inertias.

Company Information

About

  With over 20 years of experience from family in Gear-Box Motor field, MotoRong partners with customers, understanding their unique needs and developing world class Motor| Fans| Pumps solutions that exceed their expectation, which is what we believe in.

AC Synchronous Motor 50kty

  Small order and sample purchase are supported.

  To access these time savers, please select from above listings, mainly is selection of Product Groups.

  From those, you will be directed to the appropriate type that will connect you the site supporting that Resource.

AC Synchronous Motor 50kty
FAQ
AC Synchronous Motor 50kty

Q:What kind of motors you can provide?

A: We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Ac Motors etc. Check above specifications or email us to recommend motors based on your specification.

Q:Can you send me a price list?

A: All of our motors are customized based on different requirements like lifetime, noise, voltage, and shaft etc. Price also varies according to annual quantity. If you send detailed requirements and annual quantity, you can get quick quotation.

Q:What's the lead period for regular order?

A: About 30 days if no stock. Period can be shorter or longer based on different model and quantity. Regular modes normally have stock.

Q:Is it possible to have customized service if we pay sample cost.

A: Yes. According to your request for the voltage, speed, torque and shaft size/shape, we quote you. It’s better to share the detailed like annual quantity, target price etc.

Q: What's the MOQ? Can I just order few quantities?

A:Welcome to order for personal use or replacement. It’s no problem to send by international express delivery if regular mode has available stock. As for MOQ, if price and other terms are acceptable, we'd love to provide customized samples for your testing before official order.

Q: What's your payment term?

A:100% payment if quantity under 1000pcs. Above 1000pcs, 50% as deposit and 60% paid before shipment.

Q: How can I trust you to make sure my money is safe?

A: Order in trade assurance of Alibaba would be a good chose for you.

Packaging & Shipping

AC Synchronous Motor 50kty

Shipping

INTERNATIONAL AIR MAIL

Payment

Fast Delivery

Different amount of time will be required for different

Contact Us

24Hours Service



Jayo Chen

wechat/whatsapp:+86 13502040670

motorong@ 188.com OR jayochen@ motorong.com
